Work Follow:
Decoiler→Guide Feeding→Roll Forming System→AUTO Post Saw Cutter Device→Exit Rack
Machine Components
1) Manual Decoiler: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 300mm,coil ID range 508mm±30mm.Capacity: Max. 3 Ton.
2) Feeding Guide

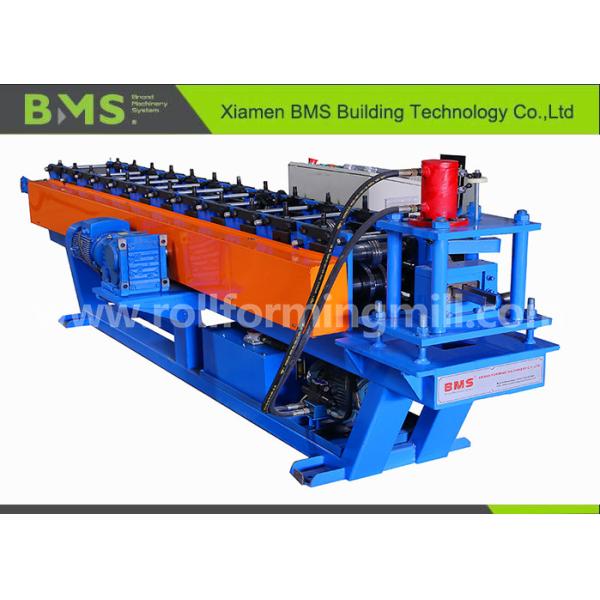

3) Main Machine
With feeding material guide, body frame made from H400 type steel by welding.
Side wall thickness: Q235 t18mm.
Rollers manufactured from GCr15 Steel(=EN31 Steel),HRC58-62
Shafts Diameter=ф70,precision machined.
Gear/Sprocket driving,about 12-step to form.
Main Motor=5.5KW , Frequency speed control.
4)Hydraulic Post Cutting Device
Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking
Hydraulic motor:4 KW;Cutting pressure: 0-16Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life)
Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station
5) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.
6)Exit Rack
Un-powered, Two units,with rollers on it for easy movement.
7)Product Show
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-Sale Service
1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
